2149 – Anti-Static Cleanroom Tape | Conductive Adhesive | 1 Mil Thick X 216′ Long | Pack*
- No adhesive residue left behind after removal
- This adhesive formulation allows it to stick to wet surfaces
- Electrical resistance 50-100K ohms/cm (127-254K ohms/in)
- No static generation during unwinding
- No static generation during removal
- Cleanroom Certified (UltraClean and Classic Clean packaging available)
*This is a made to order item in Pack Quantities ONLY and a 25 Day Lead time

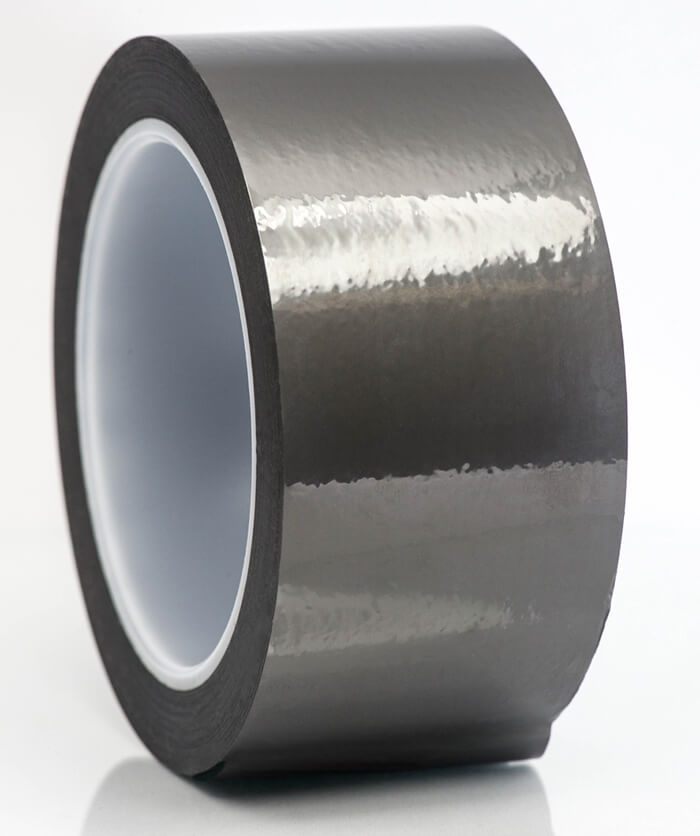

UltraTape 2149 is a polyester based film coated with a conductive synthetic rubber adhesive. This tape is ideal for masking of printed circuit boards during conformal coating. UltraTape 2149 offers the following benefits:
| Backing | PET |
| Adhesive | Conductive Synthetic Rubber |
| Total Thickness | 1.0 +/-0.25 mil |
| Adhesion to Steel 180 degree Peel | 27 oz/inch min |
| Operating Temp | 10 to 150° F |
| Elongation at Break | 80 - 120% |
| Tensile Strength | 23 lbs/in |
| Length | 36 ft |
| Available Colors | Dark Grey |
Clean Packaging options for UltraTape
UltraClean: UltraClean offers products that are inspected and individually wrapped in cleanroom polyethylene bags and offers the highest level of cleanliness available for today’s critical environments. UltraClean meets requirements for Class 1 to 1,000 (ISO Class 3-6) cleanrooms.
UltraClean comes packaged in multi-roll packs depending on size .5"(12), .75"(8), 1"(6), 1.5"(4), 2"(3)
Classic Clean: Classic Clean offers cleanroom packaging and is ideal for keeping products safe from environmental contamination prior to use. Classic Clean meets requirements for Class 10,000 to 100,000 (ISO Class 7-8) cleanrooms.
Storage: Material should be stored at 70 degrees Farenheit and 50% relative humidity
Installation: To achieve best result, surface must be clean, dry, and free of foreign material, dust, and oil. Apply firm, sustained pressure to obtain optimal adhesion.
Values provided should not be used for specification purposes. Each user should perform their own tests in the actual intended application and environment to determine suitability and assumes all risks and liabilities connected with using this product.
- Color
- Grey,
- Length
- 36 ft,
- Thickness
- 1 mils,
