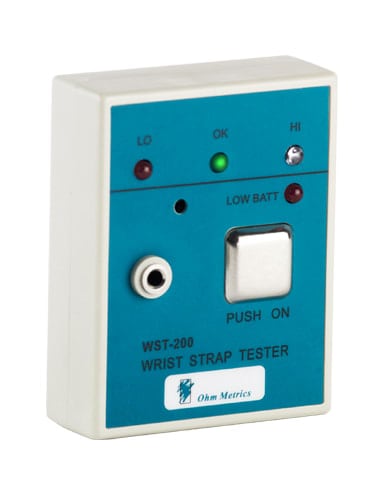

0hm METRICS Wrist Strap Tester
- The WST200 is a time saving, portable wrist strap tester that is easy to transport to test that operators are properly grounded.
- Ensures that basic ESD protection is met by quickly and accurately measuring the resistance between an operator, wrist strap and ground cord.
- Battery Powered: A low voltage of 9 volts DC so the unit is specially designed to test without using high amounts of power.
- Indicates three levels of resistance: HI, LO and OK with an easy to read LED light and an audible alarm.
- Test parameters are factory set to pass 800K-10M.
The WST 200 is the perfect wrist strap testing device for saving space and saving money. The wrist strap only tester verifies that a continuous grounding path between a wrist band and coil cord by indicating three levels of resistance:
The WST 200 tester ensures that basic ESD protection is met by quickly and accurately measuring the resistance of the wrist
strap system and signally a pass or fail. With a test voltage of 9 volts DC, the unit is specially designed to test without harm to the operator. The WST 200 verifies that a continuous grounding path between a wrist band and coil cord by indicating three levels of resistance: “HI”, “LO” and “OK” with an easy to read LED light and an audible alarm. Test parameters are factory set to
pass 800K-10M.
Meets or exceeds requirements of ANSI ESD-S20.20 and the
recommendations of ESD 4.1.
