Foot Grounder, Heel - 17260

No reviews yet Write a Review
Calculated at Checkout

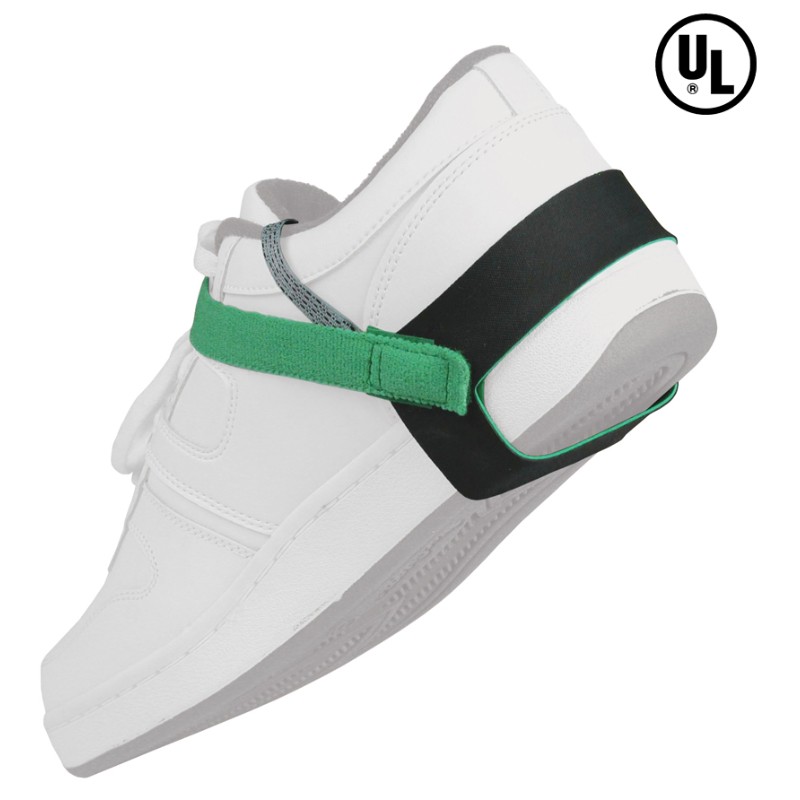

Foot Grounder, Heel, Green, W/2 Meg Resistor

  • Green hook and loop fastening system
    Unit can be used in lead-free areas where RoHS compliant items are exclusively worked on
  • Interior green rubber layer
    Non-marring on footwear and indicates that it is RoHS compliant
  • Wide bands of rubber
    Provide greater contact area to floor
  • Premium tear resistant rubber
    Provides long life - saving money
  • Two megohm resistor
    Complies with UL and OSHA standards at all times
  • Two Megohm Series Resistor
    To protect operator from accidental contact with equipment line voltage.
  • RG: 1 x 106 < 1 x108 ohms per ESD SP9.2 7 ESD TR53
  • UL listed
    Independent review of the adequacy of the product's design.
  • Made in the United States of America
    This item is made and stocked in Miami, FL

Per ESD SP9.2 APPENDIX B - Foot Grounder Usage Guidance "Compliance verification should be performed prior to each use (daily, shift change, etc.). The accumulation of insulative materials may increase the foot grounder system resistance. If foot grounders are worn outside the ESD protected area testing for functionality before reentry to the ESD protected area should be considered."
Per ANSI/ESD S20.20 Paragraph Personnel Grounding Guidance, "ESD protective flooring, used with approved footwear, may be used as an alternative to the wrist strap system for standing operations."
ESD Handbook TR 20.20 paragraph 5.2.3 "If the contact area between the bottom of the foot and the floor is not continuous, charge generation may occur especially when a person is walking. Heel straps must be worn on both feet to minimize the amount of time that the body of the person is isolated from ground while walking."
Suitable for ESD footwear component in Flooring - Footwear System personnel grounding method (<3.5 x 107 ohms per ESD STM 97.1).
Suitable for ESD footwear component in flooring - Footwear System personnel grounding method (<100 volts per ESD STM 97.2)
