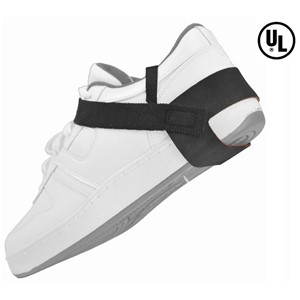

Foot Grounder, Heel, W/1Meg Resistor
- Extra-Wide Contact Area
- Additional surface area allows for a better path to ground.
- Tear Resistant Rubber With Inner Scrim
- Reinforced material prevents tearing - increasing the service life of foot grounder
- Velcro ® Stretch Hook And Loop Fastening System
- Size adjustable material expands to fit most shoe sizes comfortably and flex during walking
- 30" Long, 8 Conductive Strand Nylon Polyester Grounding Tab
- Additional conductive material provides reliable connection with operator's sweat-layer
- Non-Marring Interior Layer
- Will not mar operator's shoes
- One Megohm Series Resistor
- To protect operator from accidental contact with equipment line voltage
- UL Listed
- Independently reviewed for adequacy of the product's design
- RG: 1 x 10E6 < 1 x10E8 ohms per ESD SP9.2 7 ESD TR53
- Date Coded
- Provides lot traceability to ensure quality control and tracking information
- Made In The United States of America
- This item is made and stocked in Miami, FL
Per ESD SP9.2 APPENDIX B - Foot Grounder Usage Guidance "Compliance verification should be performed prior to each use (daily, shift change, etc.). The accumulation of insulative materials may increase the foot grounder system resistance. If foot grounders are worn outside the ESD protected area testing for functionality before reentry to the ESD protected area should be considered."
Per ANSI/ESD S20.20 Paragraph 184.108.40.206 Personnel Grounding Guidance, "ESD protective flooring, used with approved footwear, may be used as an alternative to the wrist strap system for standing operations."
ESD Handbook TR 20.20 paragraph 5.2.3 "If the contact area between the bottom of the foot and the floor is not continuous, charge generation may occur especially when a person is walking. Heel straps must be worn on both feet to minimize the amount of time that the body of the person is isolated from ground while walking."
Suitable for ESD footwear component in Flooring - Footwear System personnel grounding method (<3.5 x 10E7 ohms per ESD STM 97.1).
Suitable for ESD footwear component in flooring - Footwear System personnel grounding method (<100 volts per ESD STM 97.2).
