Warmbier CPM54 ESD Charge Plate Monitor - Ionizer Tester & Body Voltage Meter (7100.CPM54)

Warmbier CPM54 ESD Charge Plate Monitor

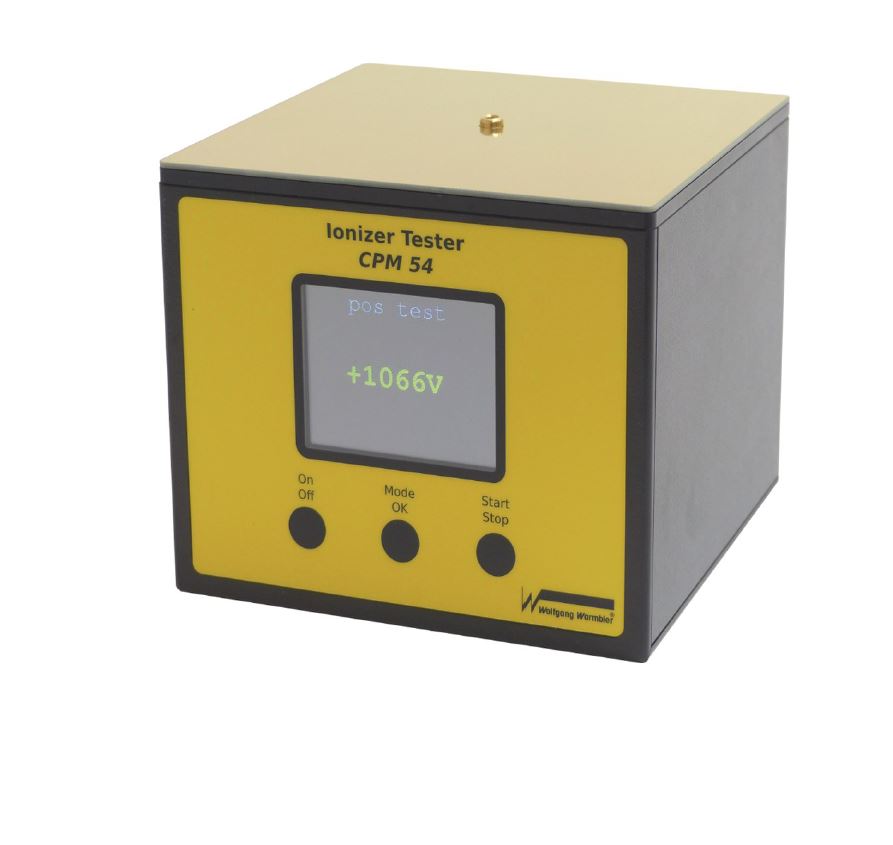

The Warmbier CPM54 is a simple-to-use, portable ESD charge plate monitor designed to test ESD air ionizer performance and body voltage on ESD floors. With just 3-button operation and a bright color display, it delivers fully automatic ionizer testing and body voltage measurement in a compact, battery-powered unit ideal for industrial and lab environments.

Compliant with ANSI ESD2020 and IEC 61340-2-1 for ionizer testing, and IEC 61340-4-5 for body voltage measurement.

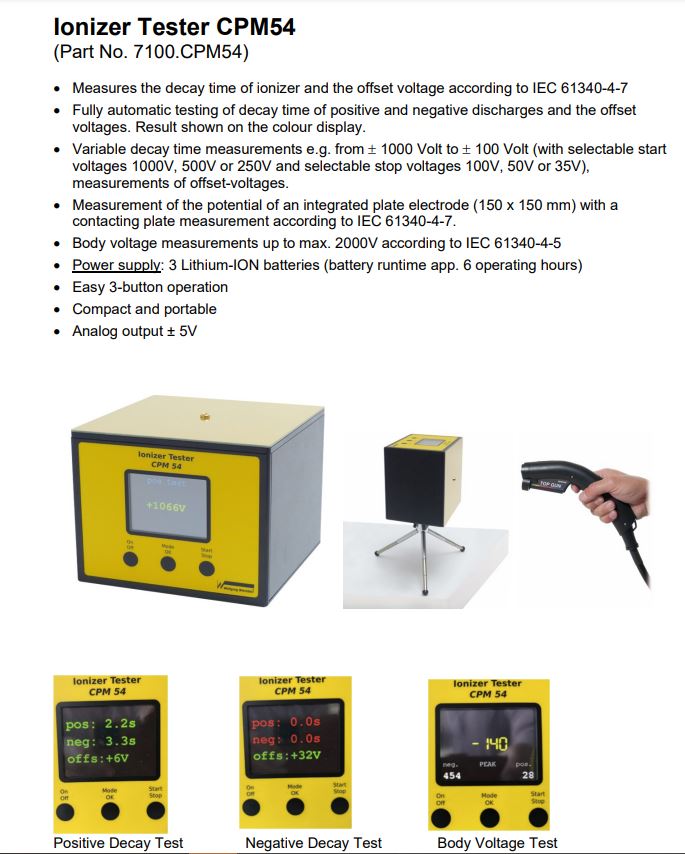

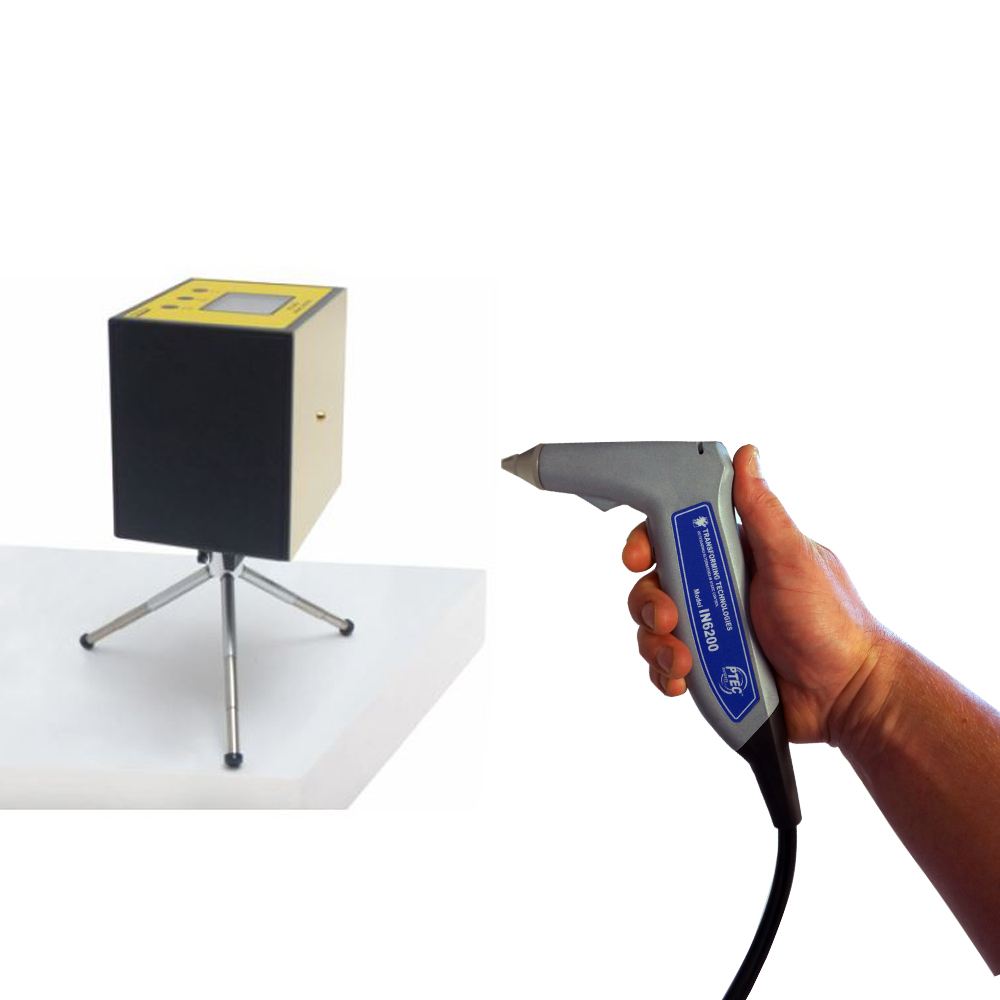

Ionizer Testing (Charge Plate Monitor)

• Automatically tests positive and negative discharge times as well as offset voltage (balance)
• Selectable start voltages: 1000V, 500V, or 250V
• Selectable stop voltages: 100V, 50V, or 35V (ESD standard default: 1000V to 100V)
• Integrated plate electrode: 150 x 150 mm per IEC 61340-4-7
• Measures discharge time from a preselected threshold to a lower voltage value (0-60 seconds range)

Body Voltage / Walking Test

• Measures body voltage up to +/- 2000V per IEC 61340-4-5 and ANSI ESD2020
• Enables the ESD Walking Test to evaluate ESD floor and footwear grounding effectiveness
• Displays real-time body voltage on color screen

Design & Usability

• 3-button menu-driven operation for ease of use in the field
• Color display shows all selected parameters and results clearly
• Powered by internal rechargeable lithium-ion battery - no external power needed
• Analog output: +/- 5V via BNC connection for data logging
• 1/4" tripod socket for hands-free positioning
• Compact dimensions: 150 x 173 x 125 mm (W x D x H), weight: 1 kg

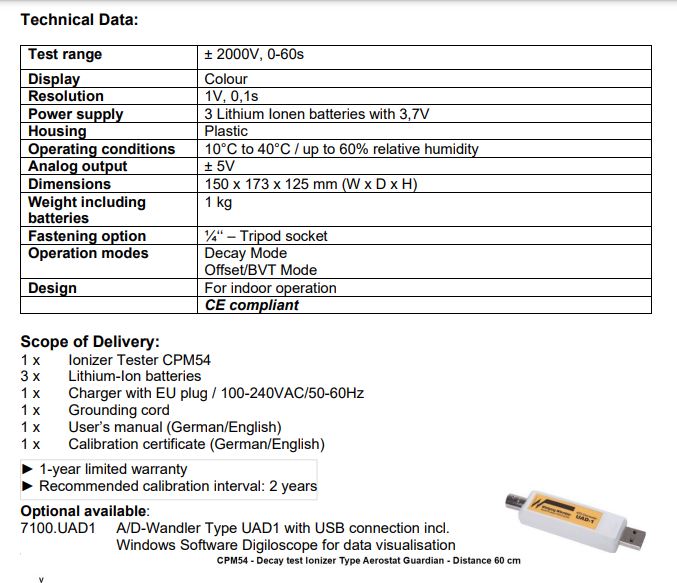

Key Specifications

• Test Range: +/- 2000V, 0-60 seconds
• Plate Electrode: 150 x 150 mm (IEC 61340-4-7)
• Display: Color LCD
• Analog Output: +/- 5V via BNC
• Power Supply: Internal Rechargeable Battery
• Dimensions: 12 x 8 x 6 in (150 x 173 x 125 mm)
• Weight: 8 lbs (1 kg including batteries)
• Mounting: 1/4" tripod socket
• Standards: ANSI ESD2020, IEC 61340-2-1, IEC 61340-4-5, IEC 61340-4-7
• Part Number: 7100.CPM54
• Brand: Warmbier

CE Compliant
