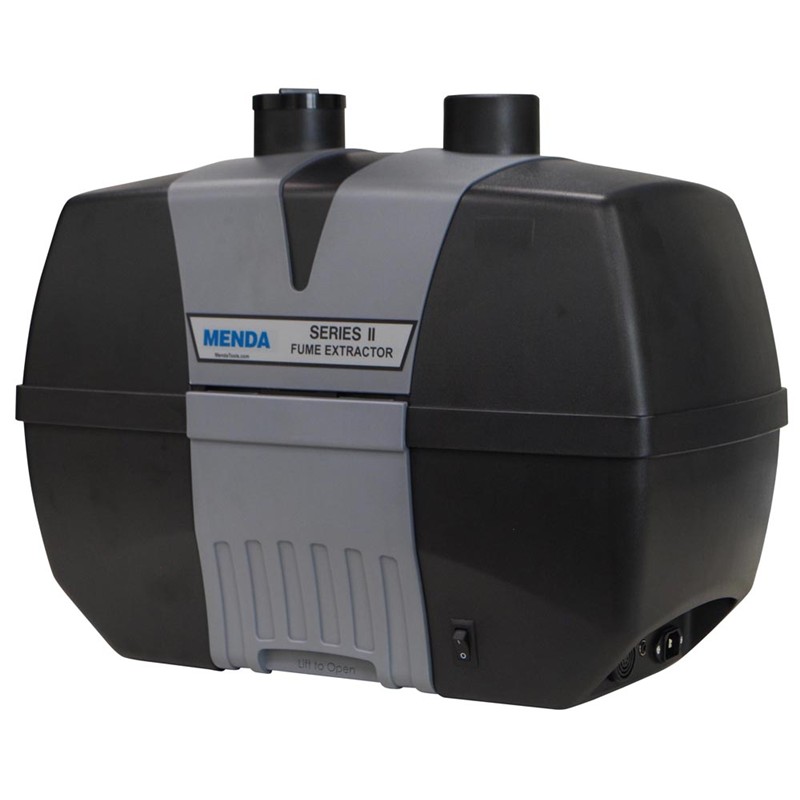

Fume Extractor, Complete System, Plastic, 120V, Ii Series
- Main Filter has 95% efficiency at 0.3 micron
- Easy setup
- Two station design for extraction of fumes, particles and vapors
- Audible alarm informs operators when filters need replacing
- Complete portability, placed under or next to the bench-top
- Easy access on/off remote switch
- Connects to 50mm (2") or 63mm(2.5") hoses or exhaust arms
- Optional HEPA Filter Available (35472)
- Optional Gas Filter Available (35473)
Contians:
- (1) 35470 ESD fume extractor
- (1) 35474 Non-Hepa Filter
- (2) 35478 Flex Exhaust Arms 5'
- (1) 35482 Remote Start/Stop Button
- (1) Power Cord
Specifications:
- Fan capacity: 90CFM
- Construction: Plastic
- Air inlets/number of stations: 2
- Filter efficiency: 95% at 0.3 micron
- Noise level: < 55 dbA
- Dimensions: 20" x 15-5/16" x 10" (508 x 388 x 254mm)
- Weight: 20 lbs (9kg)
- Voltage: 100-240 VAC
- Frequency: 50-60Hz
- Power: 85W
- Certification: TUV
- Maximum duct run: 12"
